Der Text dieser Seite ist leider nur in der englischen Version verfügbar.

Horizon /XL

The workhorse. This projector model was designed with versatility and a rich set of interfaces in mind to deal with almost any requirements. For custom solutions and special applications the implementation is straightforward.

10/100 MBit Ethernet, DMX512 in/thru, a local DMX512 output and a fully implemented RS232 interface can be used for communication. A universal switching power supply allows connection to any mains. The light source can be switched between an internal solid state laser and an external fibre input. An analog ISP (ILDA Standard Projector) input can be used as an alternative data source and an analog ISP output can be used to connect satellite projectors.

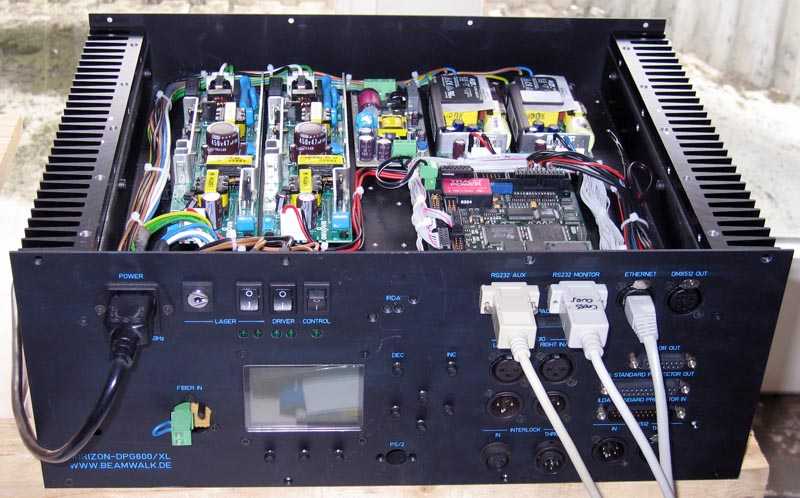

Horizon DPG-600/XL: 600mW green (532nm), ScanMaster3 projector control board, CTI analog drivers, CTI 6210 scanners.
